The Model MH-PLC300 Pulse Laser Cleaning Machine is a new design from TYLASER,which is one of the portable pulsed laser cleaning equipment,Traditional sandblasting and pickling easily damage work pieces? Pulsed laser cleaning machine, a cold processing technology! Nanosecond pulses with low heat input remove, paint, oxidation, and carbon deposits, removing only the dirt without damaging the substrate. No consumables, no pollution, suitable for molds, aviation, auto parts, and precision hardware Environmentally friendly and compliant, providing a one-stop solution to cleaning challenges.
The Model MH-PLC300 Pulse Laser Cleaning Machine is a new design from TYLASER,which is one of the portable pulsed laser cleaning equipment,Traditional sandblasting and pickling easily damage work pieces? Pulsed laser cleaning machine, a cold processing technology! Nanosecond pulses with low heat input remove, paint, oxidation, and carbon deposits, removing only the dirt without damaging the substrate. No consumables, no pollution, suitable for molds, aviation, auto parts, and precision hardware Environmentally friendly and compliant, providing a one-stop solution to cleaning challenges.

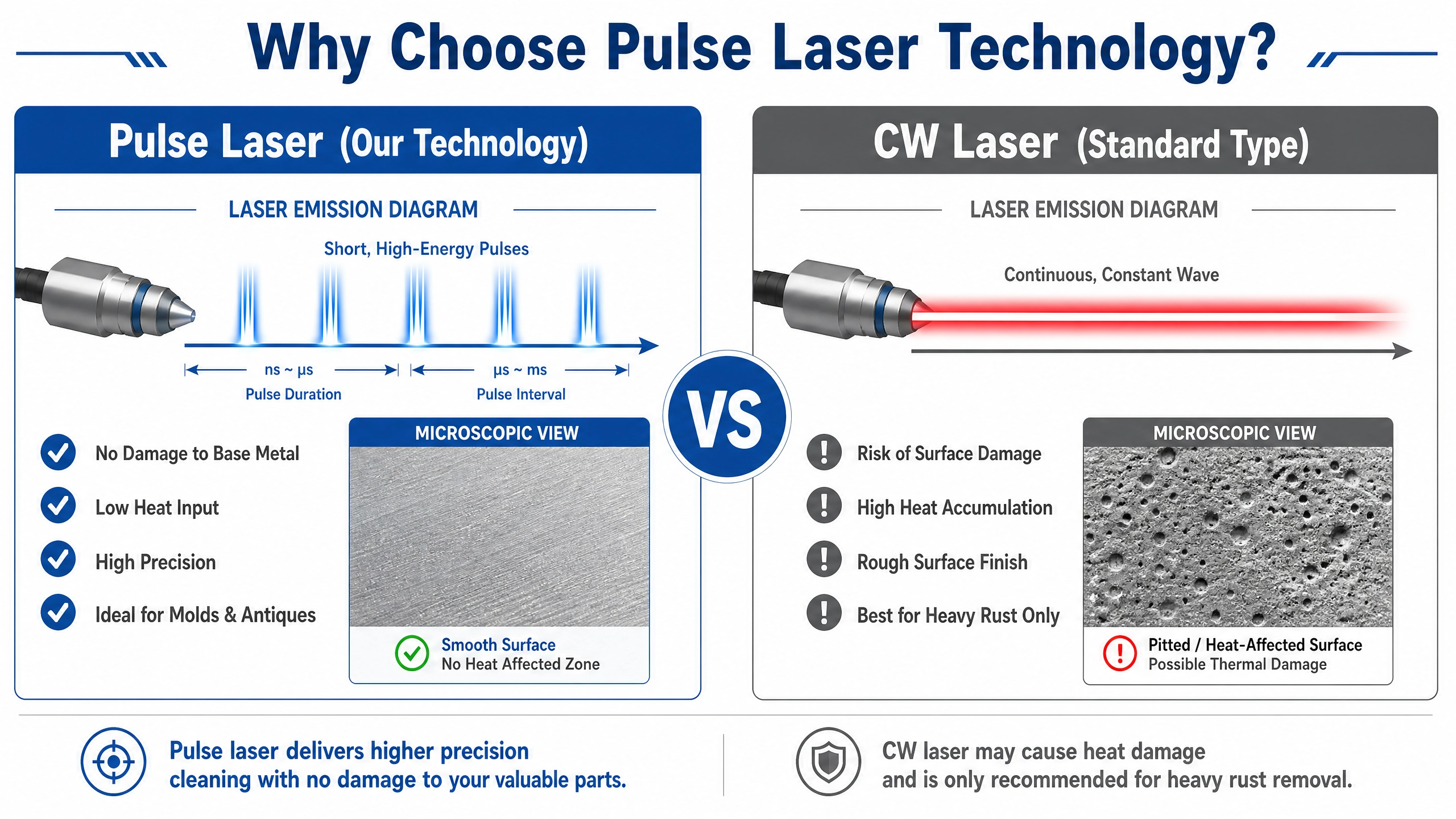

Reasons for choosing
Pulsed laser: energy is released in short pulses, high peak power, low average power; primarily non-thermal/shockwave-based, minimal effect, high precision, safe for the substrate. - Continuous laser: energy is output continuously and stably, low peak power, high average power; primarily thermal ablation-based, thermal effect, high efficiency, low cost. - Pulsed: cold processing; instantaneous vaporization plasma shock wave, heat does not have time to transfer to the substrate. - Continuous: thermal processing; heating → melting/vaporization/thermal expansion peeling, heat will conduct to the substrate.
Machine Details

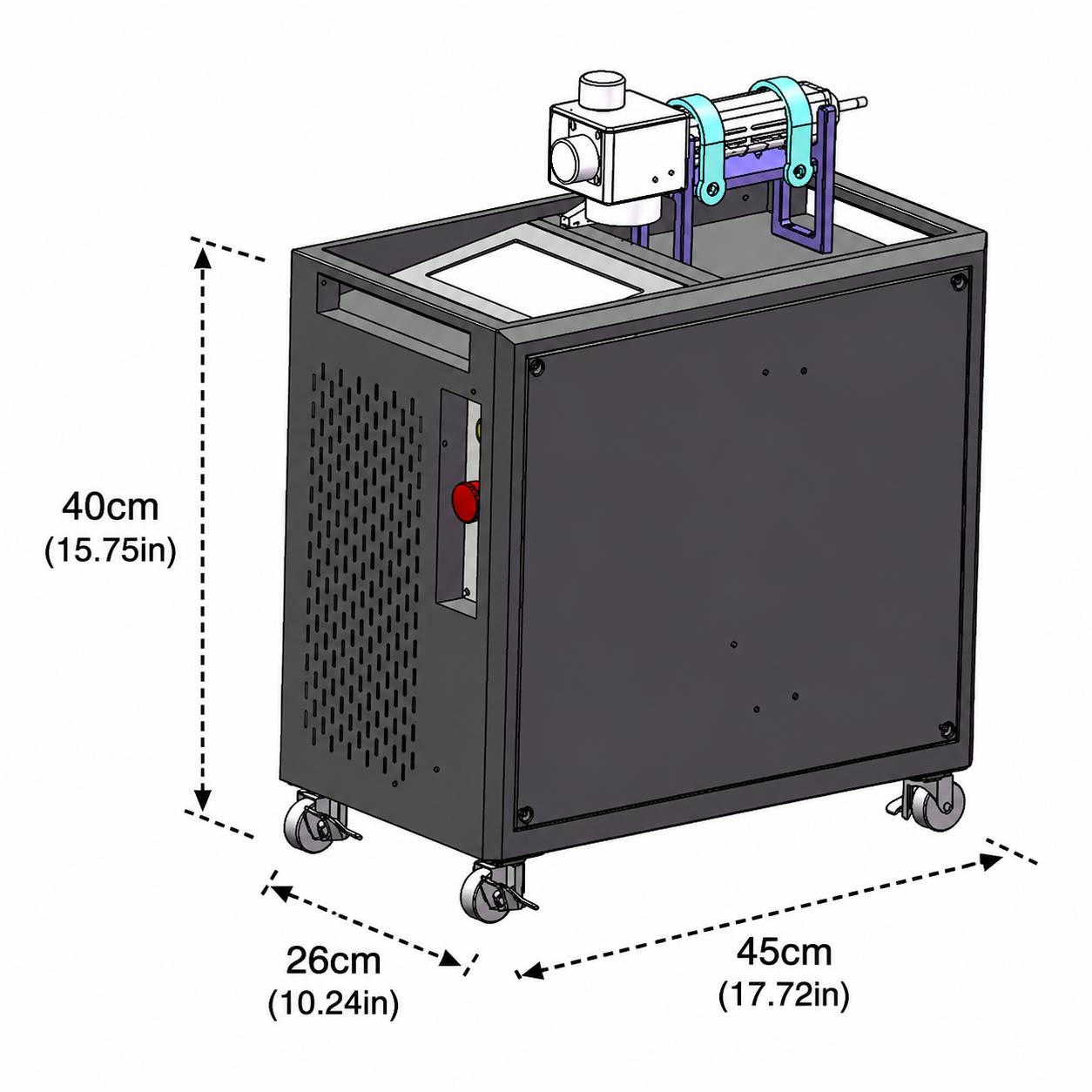

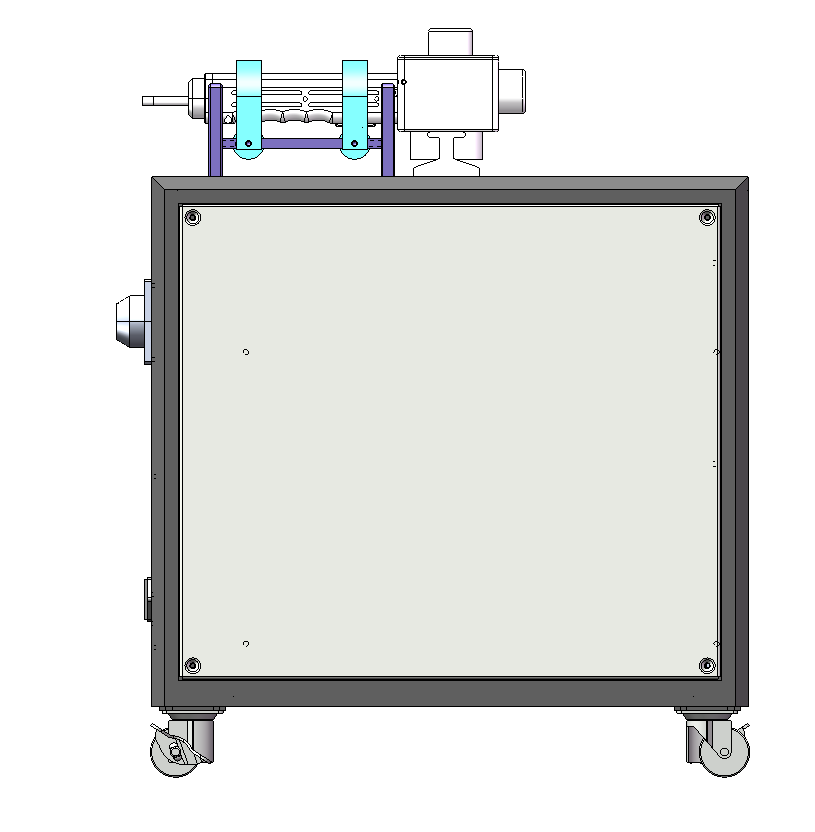

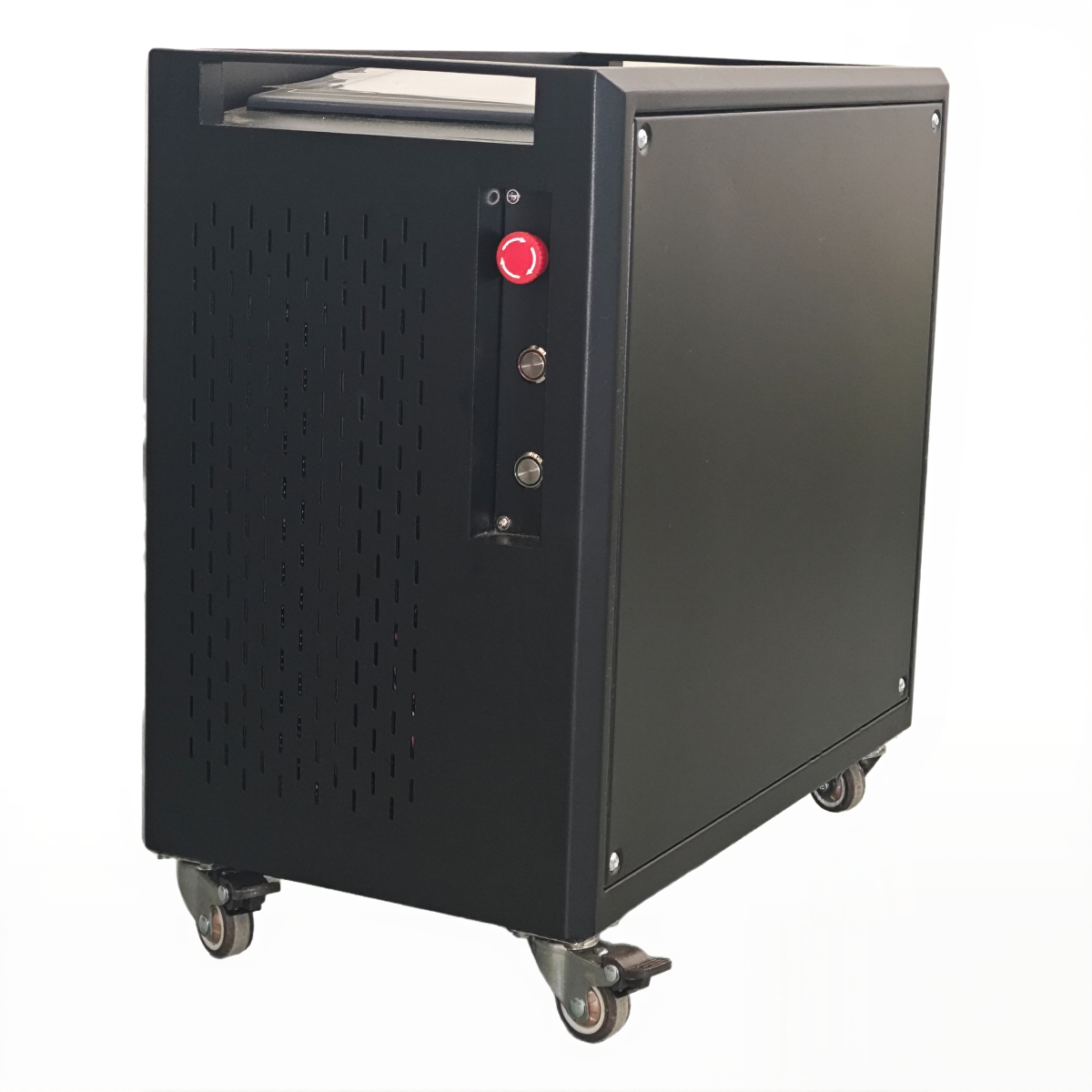

MH-PLC300 has an air-cooling system rather than a water-cooling system,which is compact and adaptable. Cabinet ventilation aligns with laser heat dissipation standards and delivers improved cooling. MH-PLC300 model is a kind of very small and portable design,machine size is just 45*26*40cm,which make sure customer can ship it by air freight easily and with low affordable cost,but it does not mean the cooling system is not good,cause we PLC300 model has dual 24W cooling fans and we also have designed many heat dissipation places,such as in front of the case and the back of the case
MH-PLC300 uses 300W of pulsed laser power to remove rust at up to 10m² per hour and paint at up to 5m² per hour. This cuts operation time in half compared to 200W laser cleaning systems. Its high pulse energy removes thick coatings in a single scan, making it well-suited for heavy rust, epoxy layers, and large industrial cleaning jobs where lower-power systems often fall short.
Laser paint removal using different 300W models and different field lenses MH-PLC models have different single-pulse laser energies, such as 2MJ, 5MJ and 15MJ, as shown in the video.
Product Details

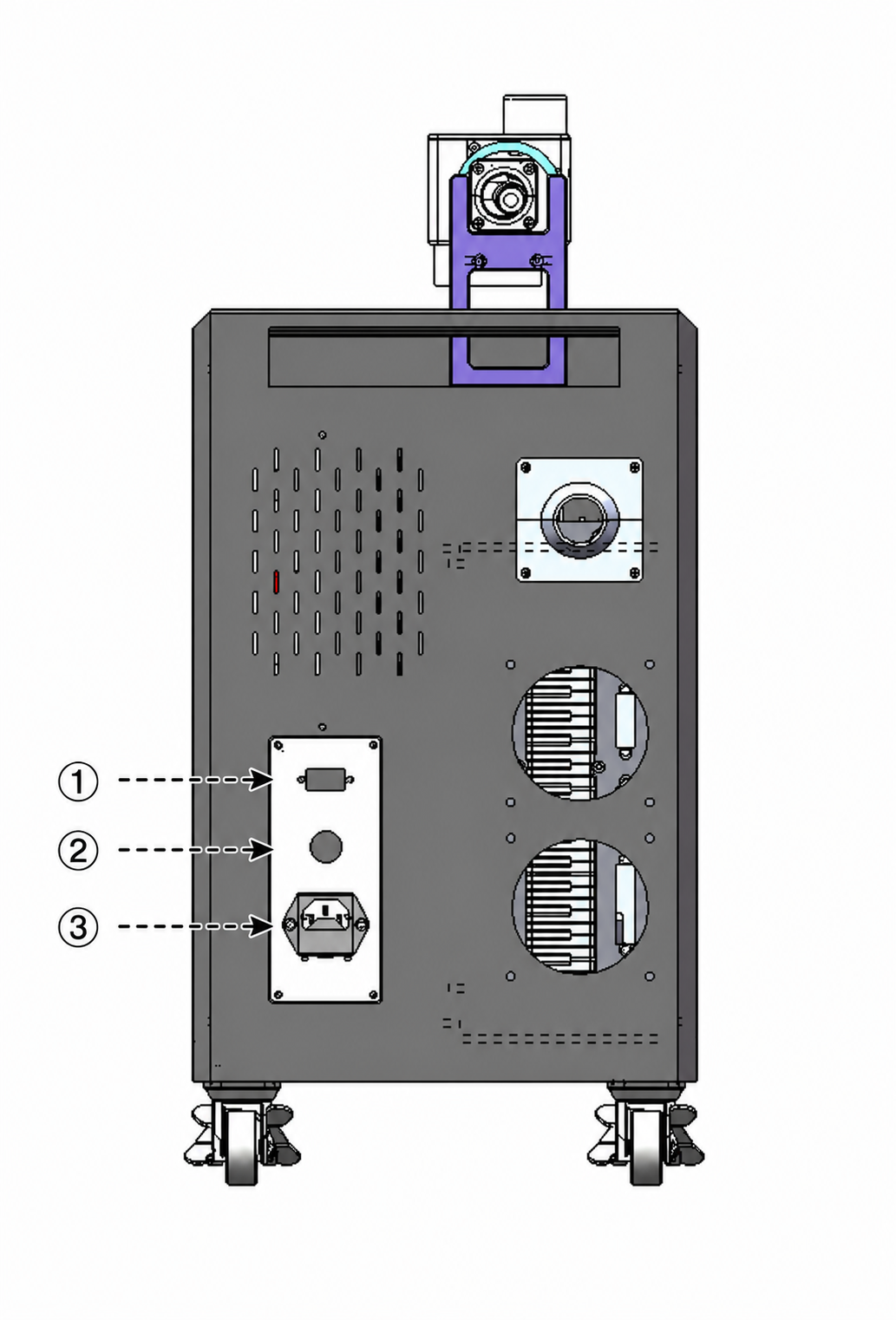

MH-PLC300 model has extra function of detecting the laser source status,which means once the machine has no laser come from,customer can detect the laser source any time,no need to wait supplier’s response,customer just need to connect the RS232 cable to the machine and his/her computer and open our testing software,he/she will know everything.
①：Laser debugging interface
②：Air inlet
③：Power supply

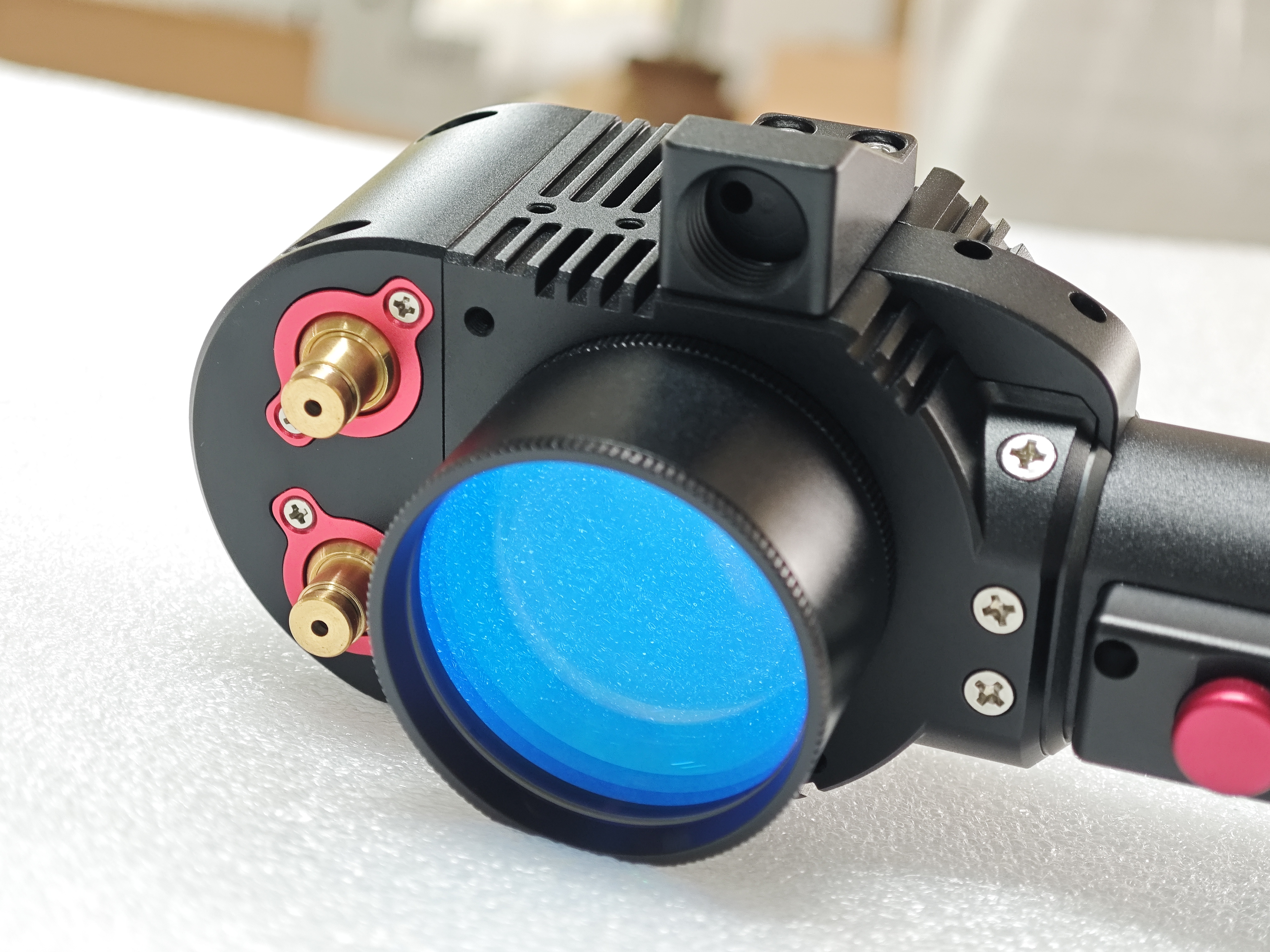

New Designed Good Quality Pulse Laser Cleaning Head
MH-PLC300 model uses famous ZBTK pulse cleaning head,which is using extra air blow device to make sure the cleaning lens is always clean and stay away from dust. MH-PLC300 model has different options for cleaning area,such as 100x100mm,160x160mm and 200x200mm to fit your different cleaning requirements,cost is same.MH-PLC300 model also had built in two red pointers to help for easy focus,when you use our laser cleaning machine,you will not need to always to find the focus,when these two red dots overlapped,means you are at correct focus.
*Why Choose Our 100W-300W Portable Pulsed Laser Cleaning Machine? *Flexible Power Adjustment (100W-300W) The power can be flexibly adjusted according to different degrees of rust and workpiece material, enabling both fine cleaning of precision parts and efficient treatment of thick rust layers, meeting various working conditions. *Truly Portable and Mobile Design Equipped with heavy-duty casters, double handles, and an ergonomic handheld gun, it can be easily pushed and operated by a single person, making it particularly suitable for internal factory operations and outdoor field work. *Integrated Powerful Dust Collection System The unique simultaneous cleaning and dust collection design can simultaneously remove dust and particles generated during laser cleaning, significantly improving the working environment, protecting operator health, and reducing secondary pollution. *Non-Contact, Green and Environmentally Friendly Cleaning Completely eliminates the use of chemical solvents, sandpaper, or abrasives, resulting in no consumables. The cleaning process does not damage the substrate, meeting modern environmental protection production requirements and providing an ideal alternative to traditional cleaning methods. *Simple Operation and Low Maintenance Costs One-button start and a clear control panel allow even beginners to quickly get started. The laser head adopts a modular design, which makes later maintenance convenient and the overall cost of use is far lower than that of traditional methods.
Applications in multiple industries
It is widely applicable to various fields such as aerospace, mold industry, automotive precision manufacturing, electronics industry, cultural relic restoration, and semiconductor industry, making it a truly versatile portable cleaning device.
Before and after cleaning comparison
Amazing Cleaning Results: Before laser cleaning, workpiece surfaces may be covered with thick layers of rust, stubborn paint, or oxides, affecting equipment performance and appearance. After 100W-300W pulsed laser cleaning, the surface quickly returns to a bright, new-looking state without damaging the substrate. Whether it's thin layers of oil or years of accumulated rust, it can be thoroughly removed in a short time, significantly improving work efficiency and product quality.
