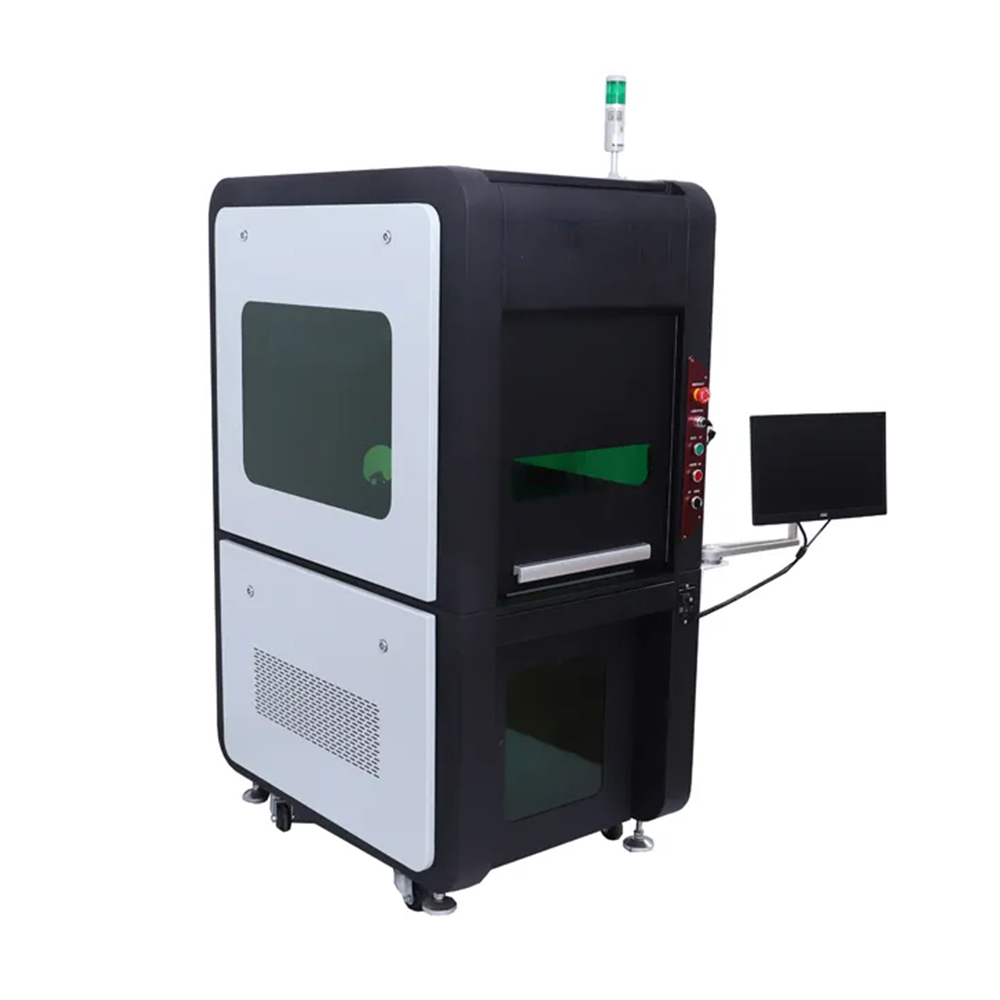

Fully enclosed marking machine

Cabinet Structure and Industrial Design Advantages

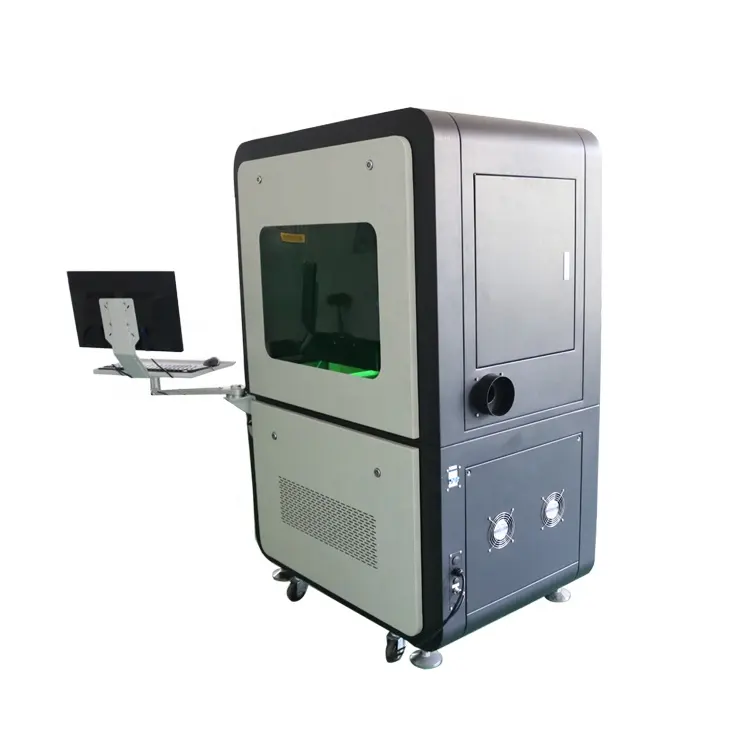

1. Fully Enclosed, Secure Structure
• Features a four-sided enclosed design that effectively prevents laser leakage.
• Equipped as standard with a Class 4 laser-protective viewing window capable of filtering 1064nm wavelength lasers.
• Complies with industrial safety standards and is suitable for continuous, long-duration production operations.

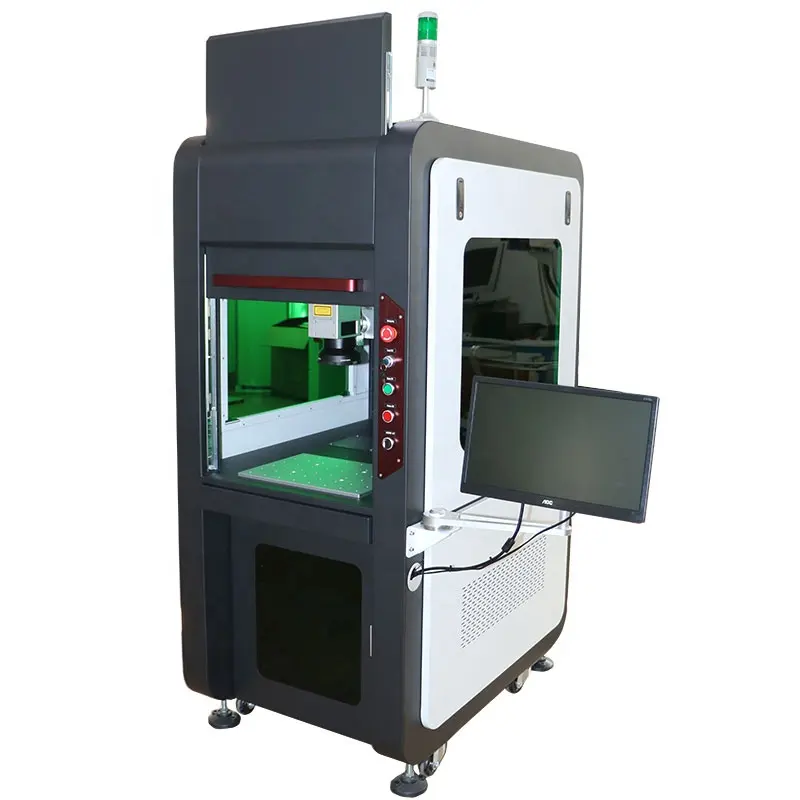

Four-Sided Quick-Access Structure
• Quick-opening access on all four sides: Front door + Dual side doors + Maintenance door
• Facilitates workpiece clamping, equipment maintenance, and internal servicing
• Enhances production efficiency and minimizes downtime

Manual Sliding Door Design
• Smooth guide rail structure ensures stable opening and closing
• Suitable for scenarios involving frequent loading and unloading
• Compatible with a light curtain safety interlock system (optional) to prevent accidental operation

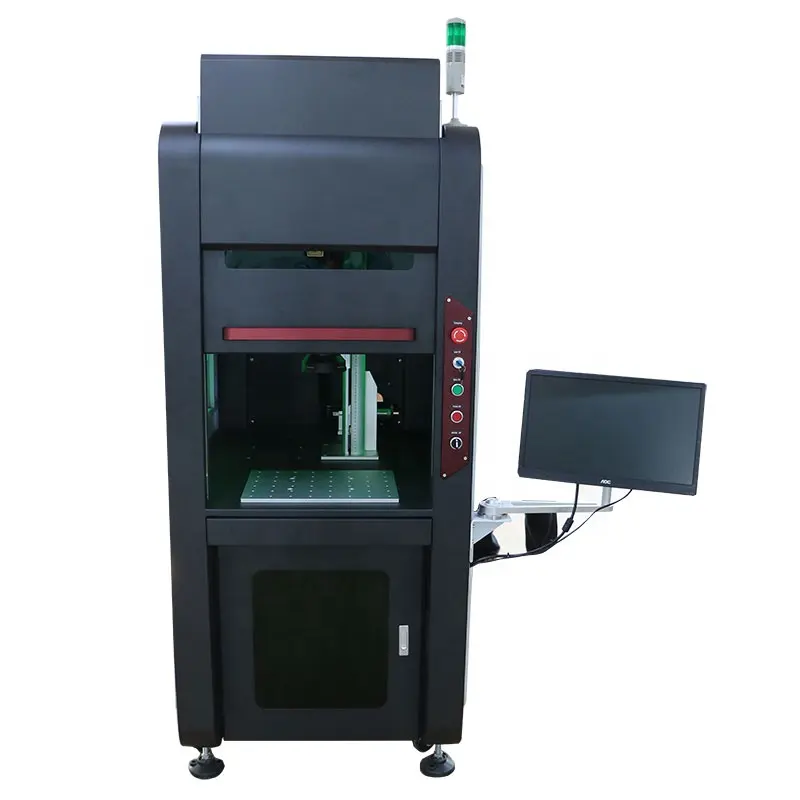

Three-Color Alarm Light System
• Green Light: Equipment operating normally
• Yellow Light: Standby / Warning state
• Red Light: Anomaly alarm
→ Enables visualized management of equipment status, enhancing production safety.

Core Optical and Motion Systems

1.High-Speed ​​Galvo System
Designed for a 10mm beam spot, featuring:
Positioning and Marking Speed: Up to 10 m/s
Repeatability: < 4 μrad
Tracking Response Time: 0.22 ms
Key Advantages:
High-speed response significantly reduces processing time for complex graphics
High repeatability ensures sharp edges for fine characters and QR codes
Exceptional stability, making it ideal for continuous, high-volume production

2. Motorized Z-Axis (Standard Configuration)
Automatic height adjustment and focusing
Higher precision compared to traditional manual focusing
Suitable for workpieces of varying heights (e.g., molds, hardware components)
Practical Value:
Reduces human error and enhances consistency in batch processing.
3. Optional Modular Motorized XY Platform
Structural Components:
Dual linear guides + ball screw
Advantages:
High-rigidity structure; smooth and stable operation
High positioning accuracy with excellent repeatability
Supports large-format tiled processing or automated displacement processing
Applicable Scenarios:
Sectional marking of large workpieces
Integration into automated production lines

Control Systems and Software Systems

1. Control Card: LMCLV7
Industrial-grade control core, featuring:
Supports precise control of laser scanning systems
Offers extensive interface expansion capabilities (I/O control)
Compatible with multiple laser types: Fiber, CO2, and YAG
Safety and Stability:
Supports system interlock control
Highly resistant to interference, suitable for operation in industrial environments
2. Software System: EZCAD2
Core Features:
Supports various graphic formats (AI, DXF, PLT, BMP, etc.)
Supports automatic generation of barcodes, QR codes, and serial numbers
Supports automatic marking of variable data (via Excel import)
Supports dynamic text (Time/Serial Number/Database integration)
Powerful hatching algorithms to enhance marking quality
Key Advantages:
Mature and stable software with widespread industry adoption
Low learning curve and intuitive operation
Ideal for automation and batch processing
Compatible with LightBurn

Laser Compatibility (20W–1000W)

Technical Advantages:
A single platform accommodates diverse process requirements
Facilitates future upgrades for customers

Industrial-Grade Workstation Configuration
CPU: Intel i5
RAM: 8GB
Monitor: AOC Industrial Monitor
Advantages:
Meets EZCAD operational requirements (far exceeding minimum specifications)
Ensures stable and smooth software performance
Supports complex graphics processing
VII. Safety and Reliability Design
Class 4 Laser Protection Window (effectively blocks 1064nm laser radiation), allowing for real-time monitoring of work progress
Three-Color Alarm Light for real-time status indication
Enclosed Structure to prevent laser leakage
Industrial-Grade Electrical Design with strong anti-interference capabilities
