TYLASER’S fiber laser marking machine is assembled with good brand components,such JPT,RAYCUS,MAX Photonics brand laser source,which make sure our machine gives good quality laser beam and long lifetime .Request a free demo today

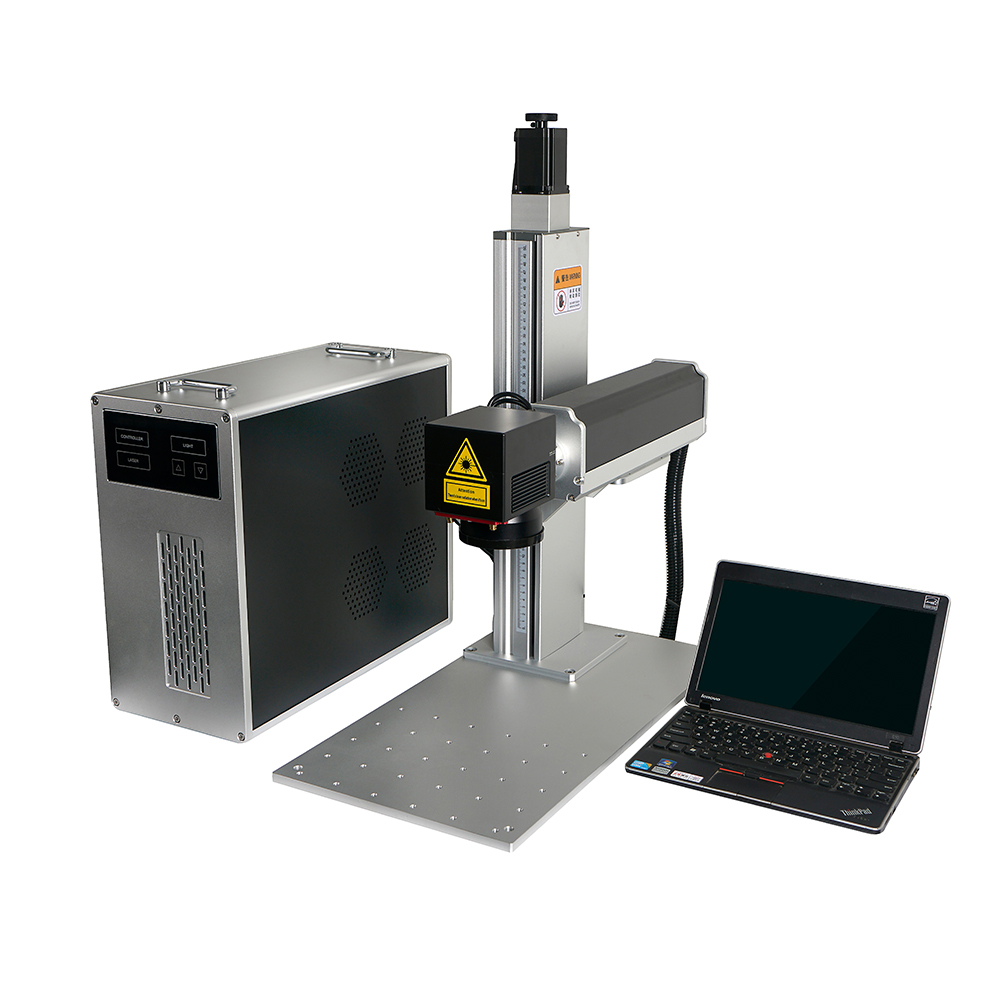

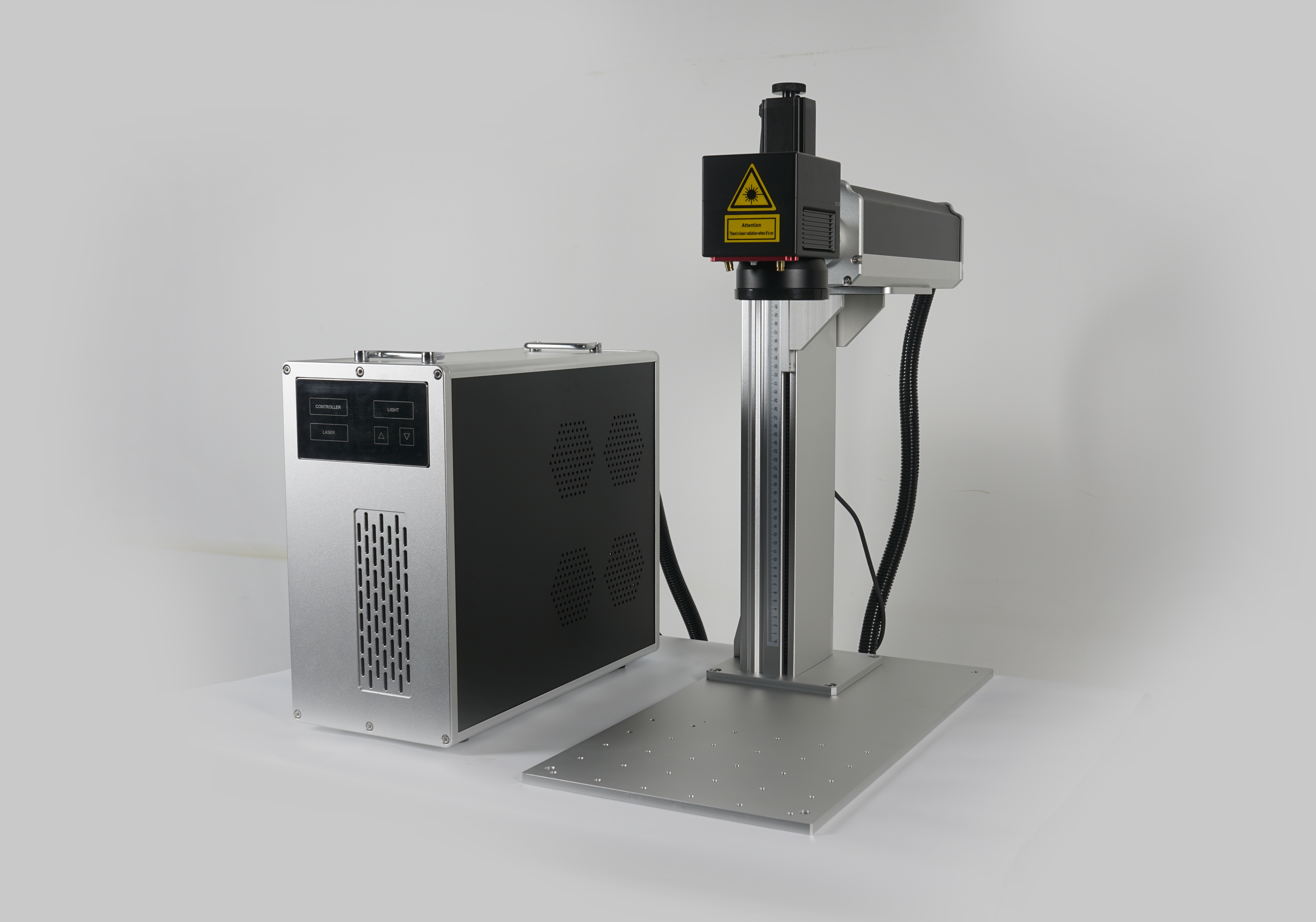

Touchscreen split marking machine It features a design that separates the main unit from the laser head, equipped with a touchscreen control interface, making it suitable for flexible industrial applications. Combining fiber laser technology, it achieves high-precision marking and is widely used in manufacturing. This touchscreen split marking machine has its own unique features：
1.Split model design with 600*300mm aluminum basement,easy to put big product on desktop

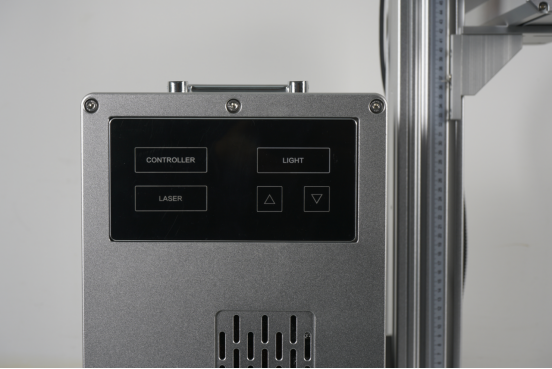

2.TYLASER designed touch screen for easy control
3.Control the machine Z axis by a remote controller

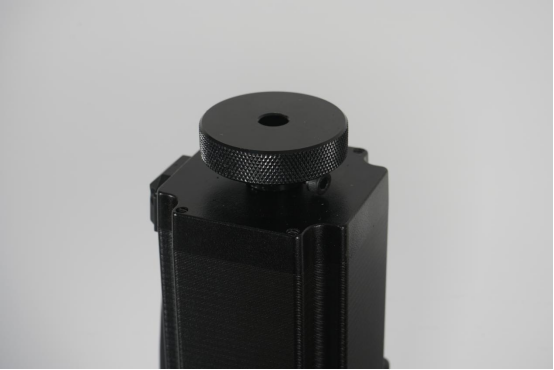

4.Each machine is with motorized Z,for easy up/down
5.Built in red pointer,for easy focus
6.Safety cover for wires connection
7.Unique machine body design,for easy heat dissipation
Applications：Touchscreen, modular laser marking machines are suitable for permanent marking on both metallic and non-metallic materials. The main unit is fixed, while the laser head can be handheld or separate, facilitating operation on large items or in real-world settings.
Common applications include:
| Application areas | Specific examples | Key parameters/advantages |
| Electronics/Communications | Markings on the phone casing, circuit board, and electronic components (such as serial number and logo). | Accuracy 0.01mm, speed 1000 characters/second, supports surface marking. |
| Hardware/Tools | Batch numbers/logo markings on tools, accessories, precision instruments, pendants, and lighters. | Suitable for steel, copper, iron, aluminum, and plastic; air-cooled design, portable and water-cooled. |
| Packaging/Food | Traceability codes on beverage bottles, wine packaging, and PVC/HDPE materials | Contactless marking, no pollution; suitable for large volumes such as containers/pallets. |
| Automotive/Auto Parts | Anti-counterfeiting marks on auto parts and motorcycle parts | It adapts to complex curved surfaces, integrates pipeline control, and is highly efficient. |
| Other | Personalized marking of jewelry, gifts, and rubber/aluminum foil; on-site marking of large items such as pipes/pallets. | The handheld split design is small in size (<6kg), making it suitable for moving objects that are difficult to move. |
| Machine Name | Touch Screen Fiber Laser Marking Machine |

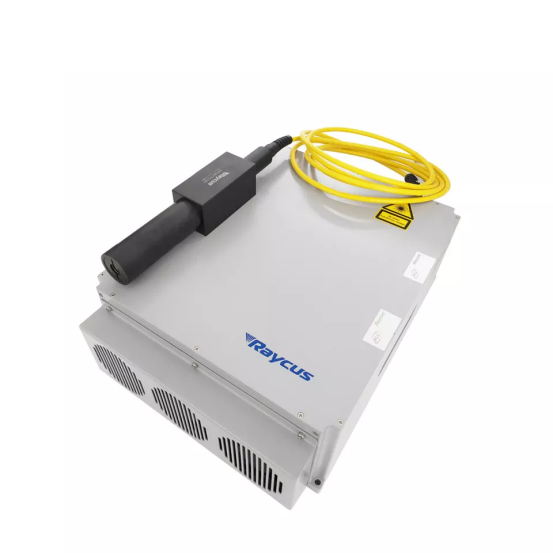

| Laser Source | JPT/Raycus/Max/IPG |
| Laser Power | 50W |
| Laser Wavelength | 1064nm |

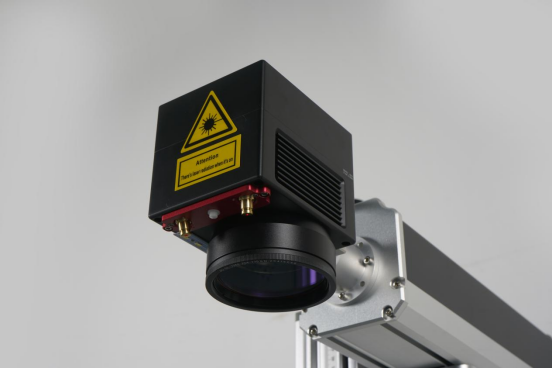

| Laser Galvo | Sino Galvo SG7110/ZBTK C |
| Marking Area | 110mm*110mm(optional) |
| Machine Gross | 60KG |
| Package | Wood Package |
| Wood Package Size | 79*61*50cm |
These applications cover 80% of industrial needs and are particularly suitable for small to medium batch production and field operations.
Compared to traditional marking machines, this model stands out with its split design plus touchscreen, high electro-optical conversion efficiency (>30%), and reliable air cooling. Advantages include：
The touchscreen-equipped, split-type laser marking machine, with its split structure and touchscreen interface at its core, offers high precision, multifunctionality, and durability. Its core advantages lie in precise marking: accuracy up to 0.01mm, speed exceeding 1000 characters/second, supporting logo, barcode, and pattern marking without substrate damage. Environmental friendliness and high efficiency are another highlight: no consumables, no waste, electro-optical conversion rate >30%, cost reduction of 70% compared to traditional methods, and minimal thermal damage. Its portable design (weight <6kg), air-cooled and maintenance-free operation, and lifespan >100,000 hours make it easy to operate on a desktop or in the field. It boasts strong material compatibility, covering metals, ABS/PVC plastics, glass, and ceramics, and supports marking curved surfaces and large items. The intuitive and user-friendly touchscreen, along with simple software upgrades, makes it suitable for small and medium-sized enterprises, improving efficiency and achieving permanent, fade-resistant marking. Overall, its energy-efficient, compact, and reliable design drives modern enterprises towards precise, rapid, and sustainable marking.
