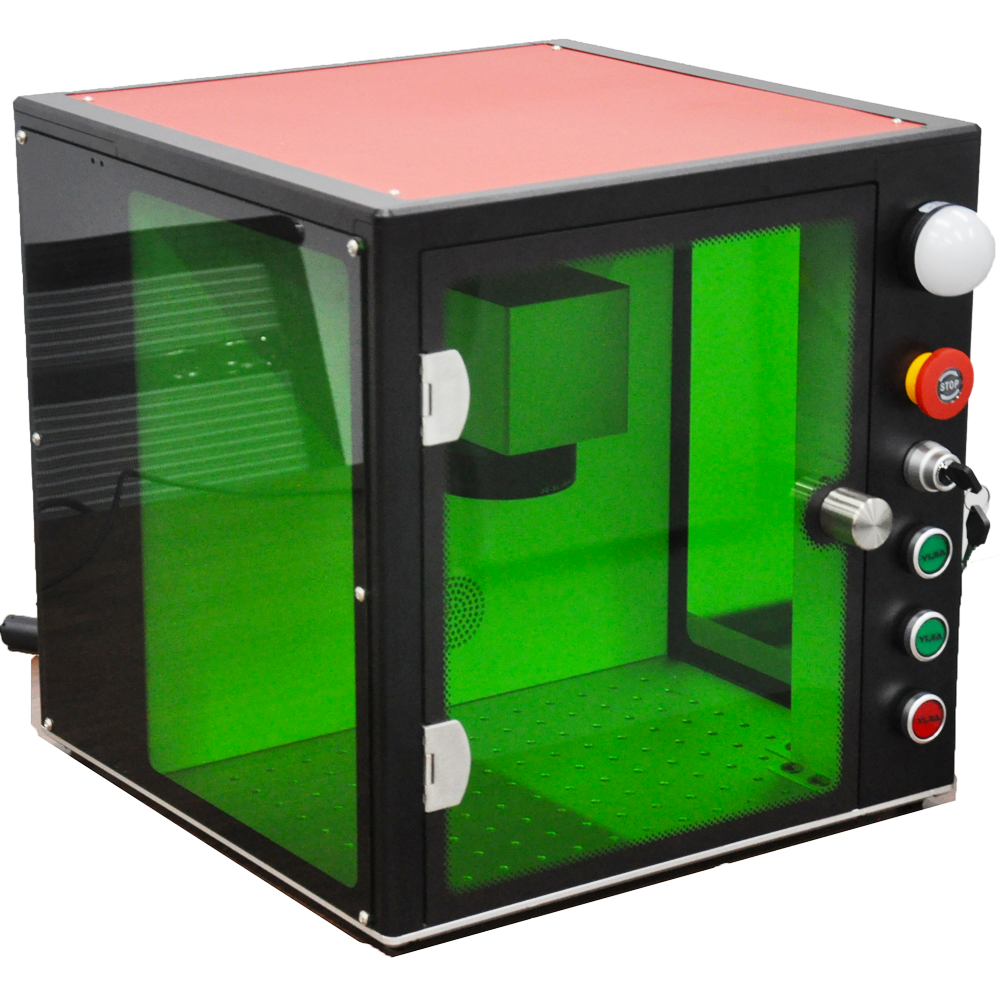

This fully enclosed laser marking machine features a sealed protective housing. Designed for high-speed, precise, and safe marking, it is ideal for industrial and commercial applications, providing enhanced protection for operators.
Product Details：
Detailed parameters：
| Laser power | Q-Switch 20W/30W Mopa 20W/30W |
| Marking range | 110mm, 150mm, 175mm, 200mm |
| Deflection galvanometer | High-precision 2D scanning system (optional with self-testing system/dual red light galvanometer) |
| Laser wavelength | 1064nm |
| Marking speed | 10000/s |
| Line width | 0.02mm |
| Repeatability | 0.01mm |
| Positioning assistance | Red light-assisted positioning |
| Number of lines of characters to be engraved | Any number of rows within the valid range |
| Font | Standard character sets for Chinese and English, numbers, and Traditional Chinese. |
| Supported file formats | BMP, DXF, JPG, JPEG, PLT, etc. |
| Barcode type | Standard symbol libraries such as barcodes and QR codes |
| Control software | Ezcad2 |
| Power consumption | ≤550W |
| Ambient temperature | 0-40℃ |
Standard Functions:
* Utilizes EZCAD2 control software, featuring a user-friendly interface and simple operation.
* Supports importing multiple file formats, such as PLT, DXF, BMP, AI, etc.
* The laser source can be either a MAX Q-switched light source or a JPT MOPA laser source to meet various processing requirements.
* Galvanometer repeatability <4μrad ensures consistent marking positions across multiple applications, ideal for high-precision products (such as QR codes and electronic components).
* Tracking error time is only 0.22ms, resulting in sharper image edges without ghosting or distortion. A tracking error time of 0.22ms delivers sharper edges without ghosting or distortion.
Small step response time of 0.43ms and large step response time of 0.93ms enable faster positioning between patterns, significantly improving overall processing efficiency.
Maximum marking speed of 10000mm/s enables high-speed mass production, reducing processing time per piece.
Nonlinearity <3.5mrad ensures uniform marking size across the entire field.
8-hour drift <0.4mrad ensures stable marking even during extended operation, suitable for continuous production. A drift of <0.4mrad over 8 hours ensures stable positioning during long, continuous operation.
* Scan angle ±0.35rad provides stable output within a standard 110×110mm field without noticeable edge distortion.
* Supports marking of text, graphics, QR codes, barcodes, and more.
* Supports marking of variable data such as serial numbers, batch numbers, and dates.
* High marking speed and precision, suitable for fine processing applications.
* Non-contact processing, causing no mechanical stress or damage to the material. Non-contact processing with no mechanical stress or damage to materials.
Suitable for marking on metals and some non-metallic materials.
Compact structure, stable operation, and low maintenance cost.
Features：

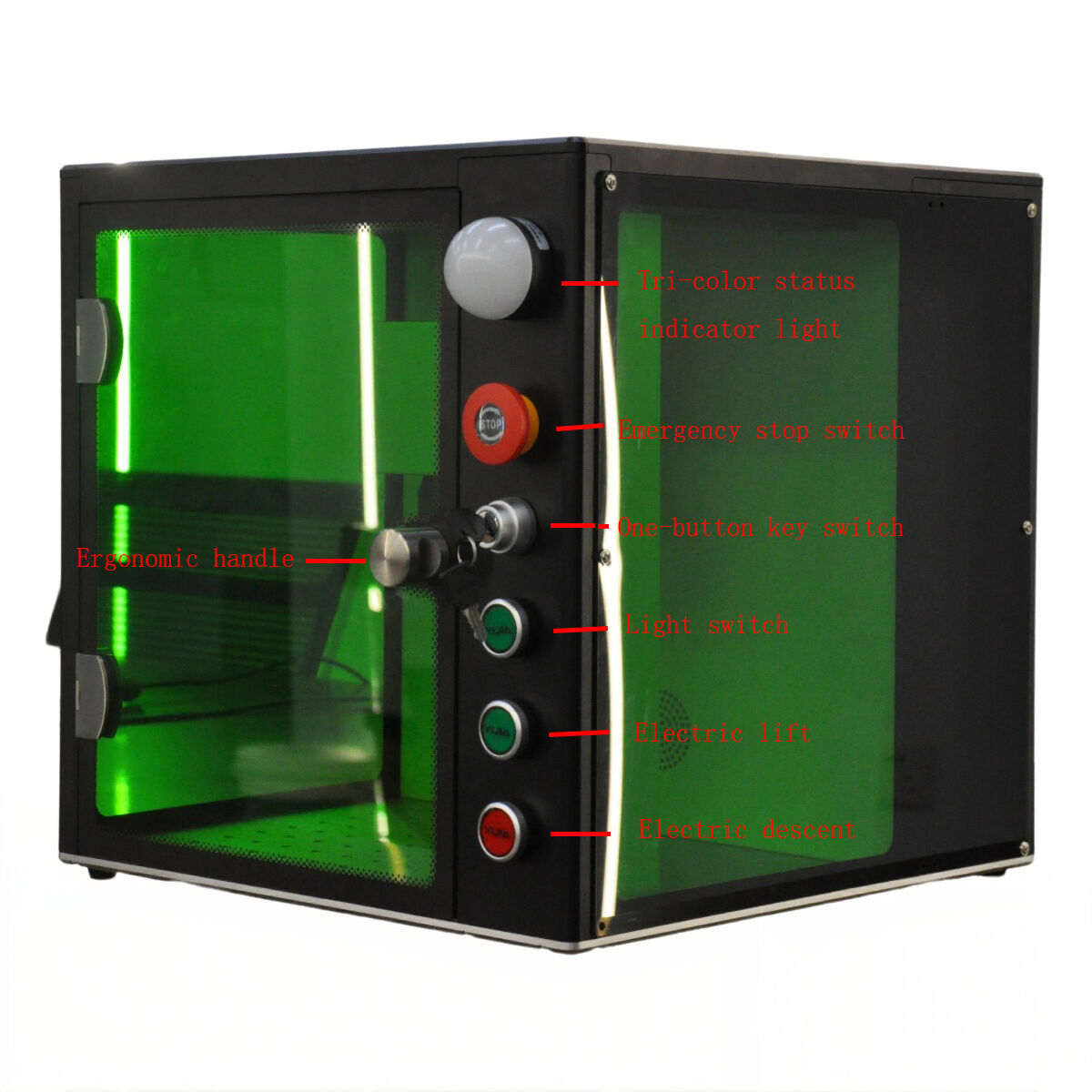

Three-color indicator lights: Red, green, and yellow indicator lights indicate different equipment statuses.
Safety door: Work cannot proceed if the door is not closed during marking; the door must be closed to clear the alarm.
Laser protective glass: Three-sided transparent, level-four laser protective glass protects users from laser damage.
Electric lifting: Electric lifting column, easy to move, with limiters to prevent collisions.
Lighting: The work area is equipped with lighting that can be freely turned on and off.

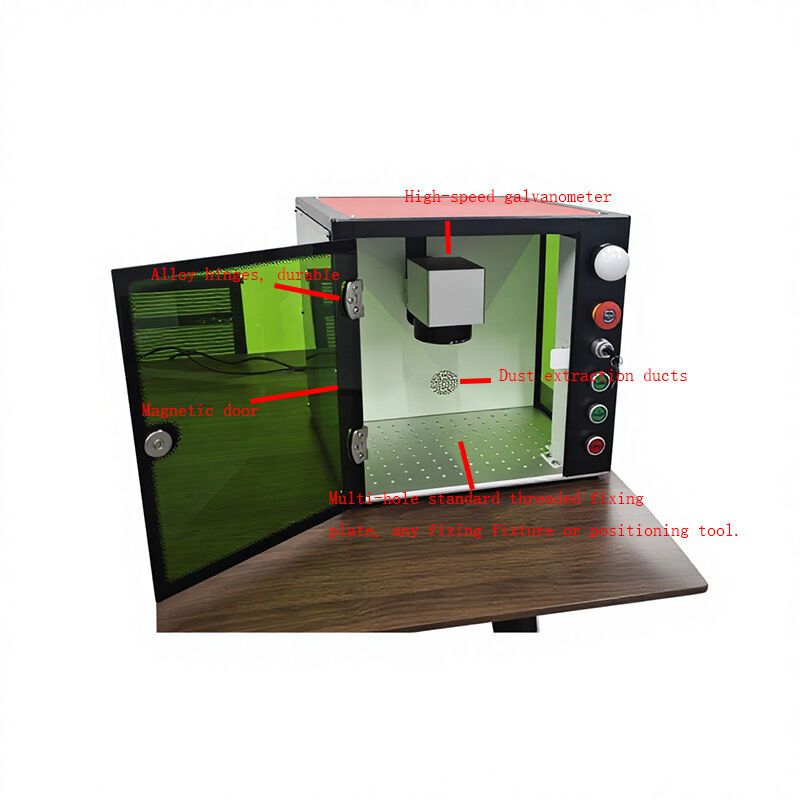

Dust extraction: A dust extraction channel is provided; it can be used with a dust extraction machine for better results.

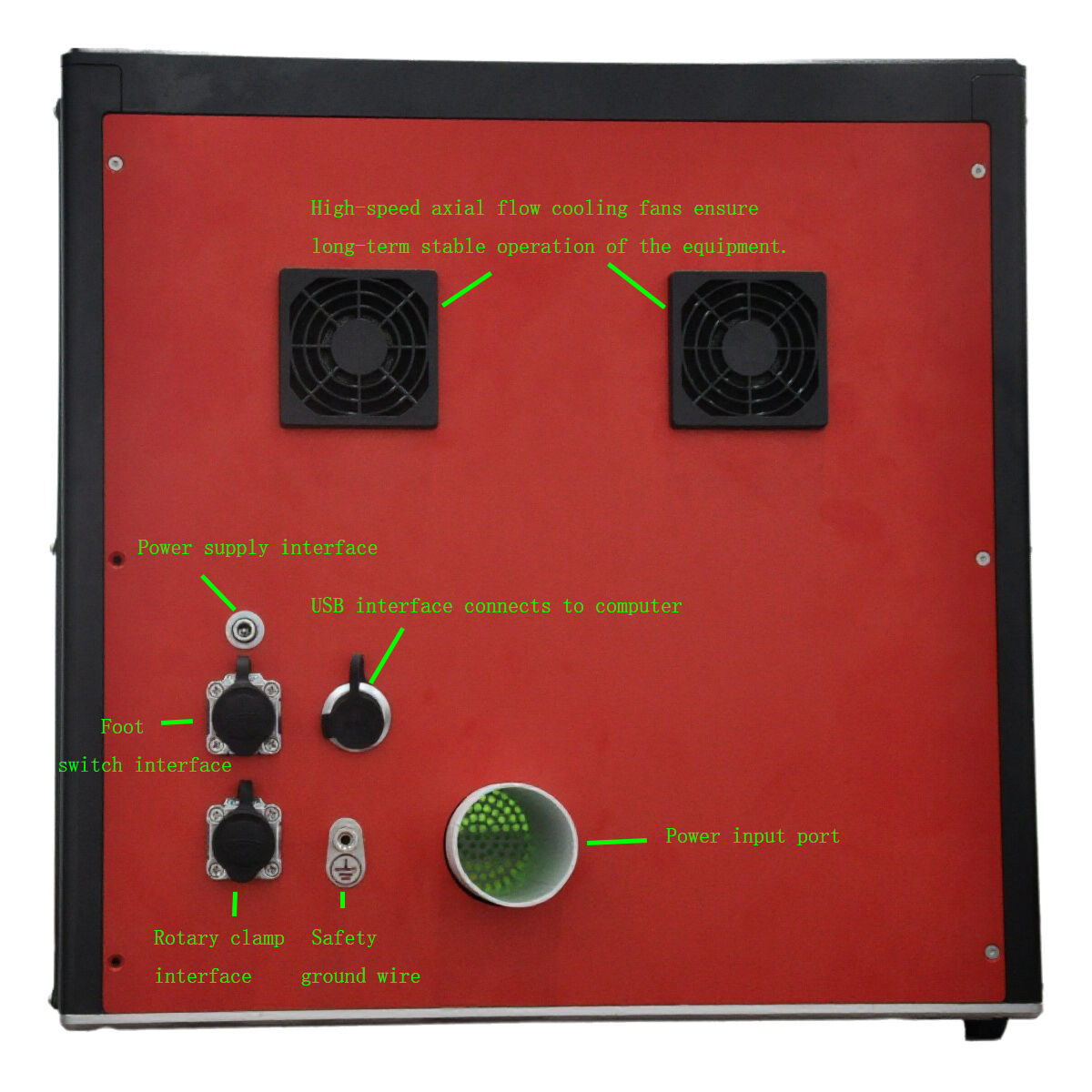

Cooling: The fan starts and stops automatically, operating with low noise.
